190XDB Version 3 Aluminum Tripod

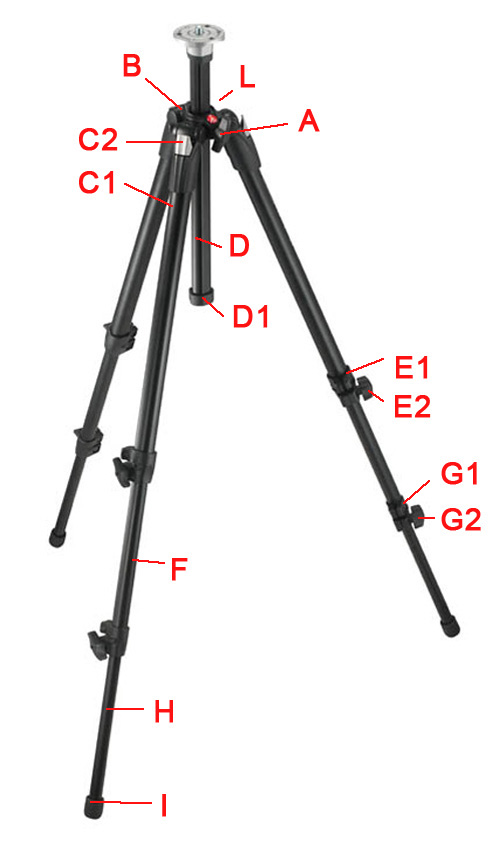

See 190XDB ver 3
Manufacturers Parts List

A1 Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Brake Shoe
A2 USED Center Column Brake Shoe

B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate
B2 USED Main Casting Bottom Plate

C USED Complete Leg Brace Assembly

C1 Leg Brace & Upper Leg Tube
C1 USED Leg Brace & Upper Leg Tube
C2 Leg Extender Release Button
C2 USED Leg Extender Release Button

D Center Column Assy
D USED Center Column Assy
D1 Center Column Plug
D2 Grub Screw Single
D2 Grub Screw 5 Pack
3 grub screws required
D3 Rubber Spacer

E1 Upper Leg Clamp Assy
E1 USED Lower Leg Clamp
E2 Upper Lock Knob

F Black Middle Leg Tube
F USED Black Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Lock Knob

H Lower Leg Tube
H1 USED Lower Leg Tube
I1 Rubber Foot (set of 3)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)

J Torx Wrench included with part E1 & G1)

L Strap Loop
L USED Strap Loop




Editor note: Part C2 is different on versions 1 and 2 and changes on versions 3 and 4. Click on the numbered link to see the actual part picture.
