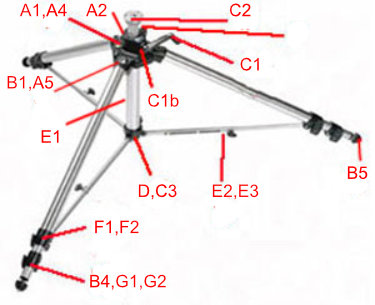

3036 Version 5-Aluminum Tripod

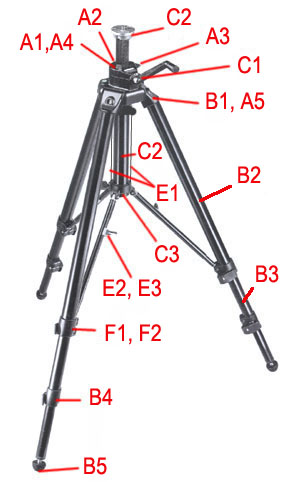

A1 Main Casting Top Plate
A1 USED Main Casting Top Plate
A2 USED Main Casting Bottem Plate
A3 Casting Lock Knob
A3 USED Casting Lock Knob
A4 Bubble Level
A5 USED Leg Retainer

B1 USED Leg Brace
B2 USED Upper Leg
B3 USED Middle Leg
B4 USED Lower Leg
B5 Rubber Foot

C1 Elevation Crank
C1 USED Elevation Crank
C1b Elevation Gear
C1b USED Elevation Gear
C2 USED Six Sided Center Column
C3 Center Column Plug
C5 Center Column Tubing

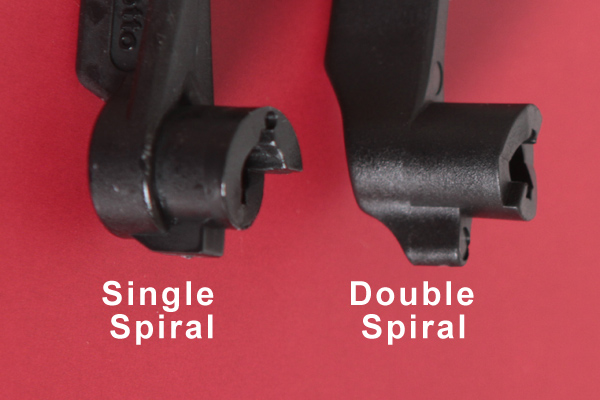

Editor note:Check the inside of the leg lock flip lever. Earlier versions have a single spriral and later versions will have a double Spiral, as shown.

D1 USED Upper Leg Lock
D2 USED Upper Leg Lock Snap Lever

E1 USED Center Column Rod
E2 Spider Tension Knob
E2 USED Spider Tension Knob
E3 USED Spider Strut Assy

Editor note:Check the inside of the leg lock flip lever. Earlier versions have a single spriral and later versions will have a double Spiral, as shown.


F1 USED Lower Leg Lock
F2 USED Lower Leg Lock Snap Lever


Editor note: Not all parts are interchangeable between versions. Center Columns, Elevation cranks and gears and main castings are not interchangeable between versions. You can completely replace the leg lock assembly on version 5 with the version 4 leg locks. The snap lock levers are NOT interchangeable.

Click on the link to see the actual part picture.

See 3036 ver 5
Manufacturers Parts List
