756MF3 version 1 Carbon Fiber Video Tripod

Made after 2004-11-02
For serial number from A0010271

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.


A1 Center Column Lock Knob
A2 Center Column Brake Shoe(not a stock item)

B1 Main Casting Top Plate (not a stock item)
B2 Main Casting Bottom Plate (not a stock item)

C1 Pro Center Column Adpater (protrudes at bottom)
C2 Rotation Bushing
C3 Pro Center Column Adapter (recedes on bottom)

D Center Column Assembly
D1 Top Leveler Plate
D2 Center Shaft
D3 Inside Ball
D4 Center Column
D5 Leveler Plate Tightening Knob

E1 Leg Brace & Upper Leg Tube (not a stock item)
E2 Leg Extender Release Button (not a stock item)
E3 Clamping Collar Sleeves
(discontinued no longer available)
E4 Leg Tube Sleeves
(discontinued no longer available)
E5 USED Leg Clips - 2 pack

F1 Upper Leg Clamp Assy (not a stock item)
F2 Upper Snap Lever (not a stock item)

G Middle Leg Tube (not a stock item)

H1 Lower Leg Clamp Assy (not a stock item)
H2 Lower Snap Lock Lever

I Lower Leg Tube

J Rubber Foot (set of 3)

K Cable Clip & Wrench

L Strap Loop
L USED Strap Loop

Editor note: All versions are interchangeable

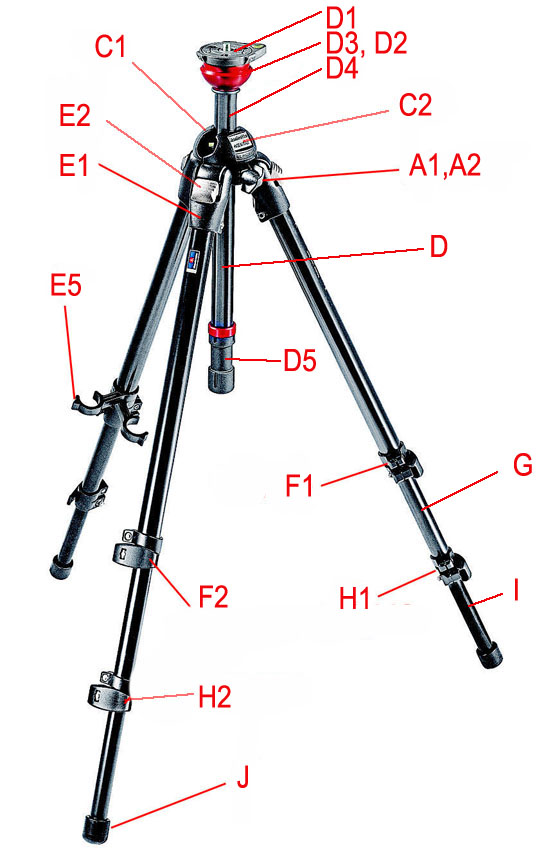

Click on the link to see the actual part picture.
