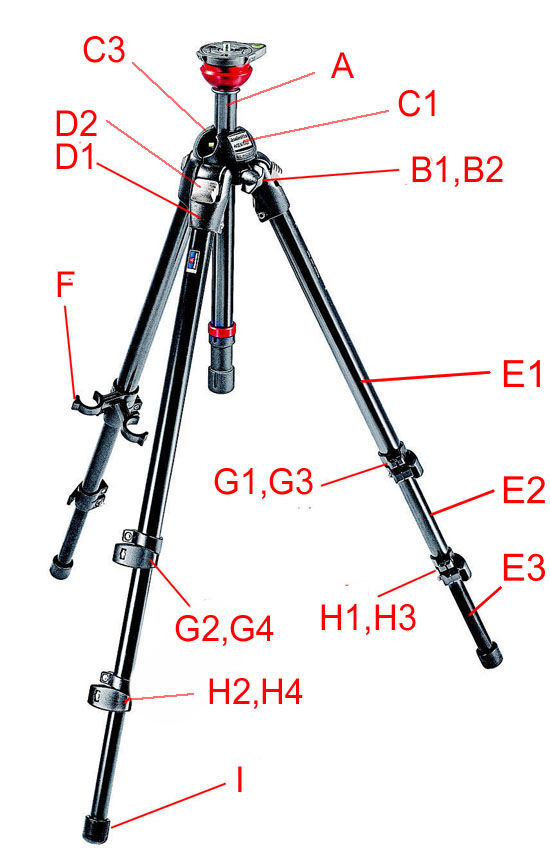

756B Version 1 - Aluminum Tripod
Made after 2002-09-17
A1 Top Leveler Plate
A2 Center Shaft
A3 Inside Ball
A4 Center Column
A5 Leveler Plate Tightening Knob
B1 Center Column Lock Knob
B2 Center Sliding Block
C1 Center Column Capstan Left (protrudes on the bottom)
C2 Friction Bearing
C3 Center Column Capstan Right(recessed on the bottom)
C4 Main Casting Top Plate
C4 USED Main Casting Top Plate
C5 Main Casting Bottom Plate
D1 Leg Brace
D1 USED Leg Brace
D2 Leg Release Button
D2 USED Leg Release Button
E1 Upper Leg Tube
E2 Middle Leg Tube
E3 Lower Leg Tube
F USED Leg Clips - 2 pack
G1 Original USED Upper Leg Clamp Assy
G2 Original Upper Snap Lever
G3 Replacement Upper Leg Clamp
G4 Replacement Upper Snap Lever
H1 Original USED Lower Leg Clamp Assy
H2 Original Lower Snap Lever
H3 Replacement Lower Leg Clamp
H4 Replacement Lower Snap Lever
I Rubber Foot (not a stock item)
Editor note: Parts C5, D1, E1 has different parts numbers
from version 1 to version 2 and may not be interchangeable.
The leg snaps parts G2 and H2 are old & not interchangeable
with the new replacement parts G3, G4, H3, H4.
Click on the numbered link to see the actual part picture.
