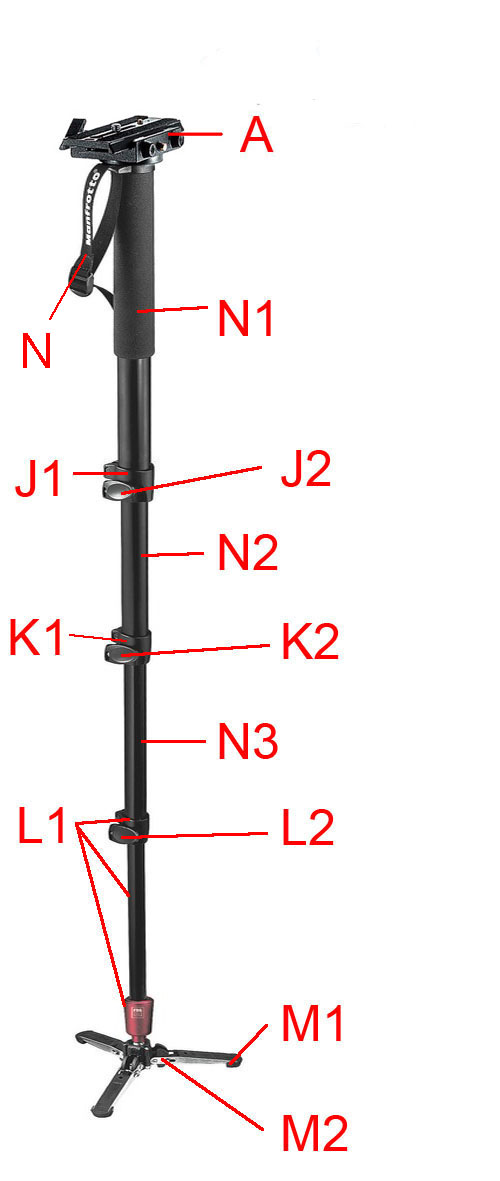

Bogen 562B Video Monopod

Made after 2007-02-16
For Serial Number A0678954

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

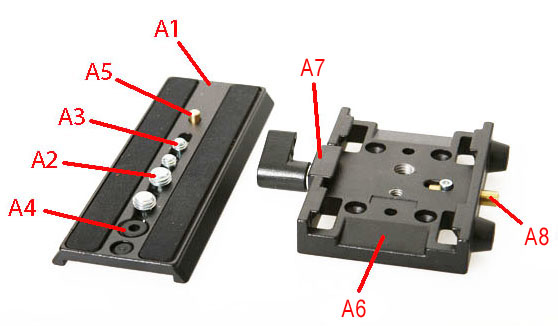

A 357 QR Plate Adapter

A1 357PLV Plate Only
A1 357PLONG Plate Only
A2 3/8-16 Screw (set of 2)
A3 1/4-20 Screw (set of 2)
A4 Rubber Stopper
A5 Anti-Rotation Spring Pin (not a stock item)
A6 QR Receiver Plate (not a stock item)
A7 Locking Knob & Shoe (not a stock item)
A8 Safety Lock (not a stock item)
J1 Upper Leg Lock
J2 Upper Snap Lever
K1 Middle Leg Lock
K2 Middle Snap Lever
K2 USED Middle Snap Lever
L1 Lower Leg Section Assembly
(Includes: lock, tube, red ball joint)

L2 Lower Snap Lever
M1 Rubber Pads for Foot
M2 Foot Assembly - rubber pads not included
N Wrist Strap
N1 Upper Leg Tube with Grip

N2 Upper Middle Leg Tube
N3 Lower Middle Leg Tube

Editor note: Item numbers listed in the index on the right column may not be shown on the picture because the part may be obscured or is inside in underneath another part and cannot be shown.
