350MV Version 4 Video Tripod
Made after 2005-05-10

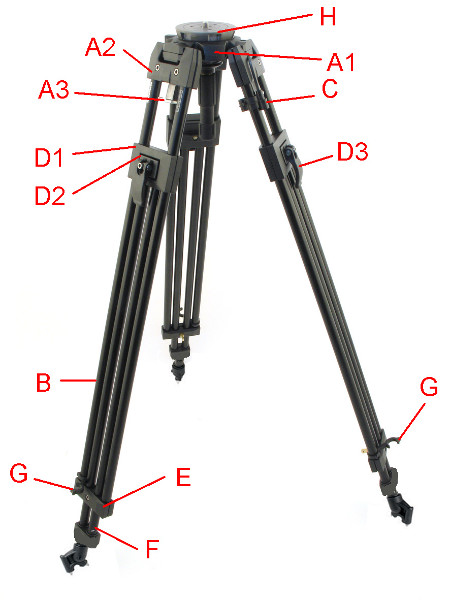

Black Tripod Shown as Illustration Only
A1 Main Casting Top Plate
A2 Leg Brace & Pivot Assembly
A2a Leg Brace & Pivot Assembly Screw & Locking Nut
A3 Leg Release
A4 Leg Pivot Replacement Part
B Upper Leg (Black Tube Only)
C Cable Clip & Wrench
D1 Sliding Clamp Assembly
D2 Clamping Shoe Only
D3 Clamp Lever
E Leg Yoke
F Lower Leg Tube (not a stock item)
G Leg Clip
H Ball Assembly 100mm
Click Here for parts for 500Ball
I1 Rubber Foot (not shown)
I2 USED Rubber Padded Foot
I3 Rubber Padded Feet, set of 3
Editor note: There is no difference between version 3 and 4 except a name change on part A4. This tripod uses the same parts as 350B, except the leg tubes are silver instead of black.
A2 Leg Brace & Pivot Assembly
A2a Leg Brace & Pivot Assembly Screw & Locking Nut
A3 Leg Release
A4 Leg Pivot Replacement Part
B Upper Leg (Black Tube Only)
C Cable Clip & Wrench
D1 Sliding Clamp Assembly
D2 Clamping Shoe Only
D3 Clamp Lever
E Leg Yoke
F Lower Leg Tube (not a stock item)
G Leg Clip
H Ball Assembly 100mm
Click Here for parts for 500Ball
I1 Rubber Foot (not shown)
I2 USED Rubber Padded Foot
I3 Rubber Padded Feet, set of 3
Editor note: There is no difference between version 3 and 4 except a name change on part A4. This tripod uses the same parts as 350B, except the leg tubes are silver instead of black.
