Bogen 3411 Silver Tripod

See 3411

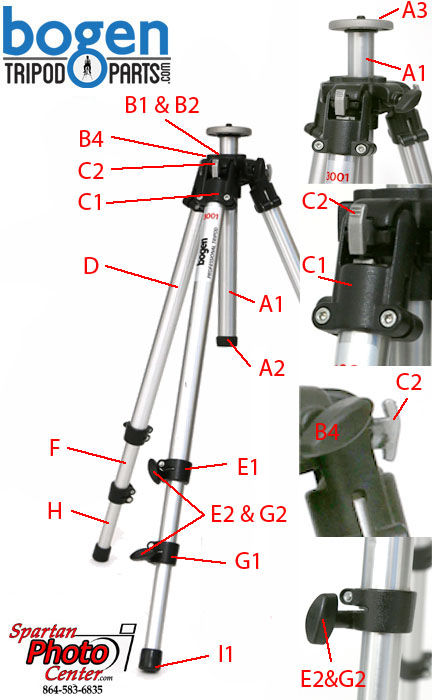

Manufacturers Parts List

A1 Center Column
A2 Center Column Cap
A2 Center Column Cap 5 Pack
A3 Grub Screw
A3 Grub Screw - 5 Pack

B1 USED Upper Main Casting
B2 USED Lower Main Casting
B3 USED Column Locking Shoe & Spring
B4 USED Center Column Lock Knob

C1 USED Leg Brace
C2 USED Leg Release Button

D USED Upper Leg Tube

E1 USED Upper Leg Clamp Assembly
E2 Replacement Leg Lock Knob (deep throat)
E2 Leg Lock Screw (deep throat)

E3 Leg Lock Cap Screw
E4 Leg Lock Hex Nut

F USED Middle Leg Tube

G1 USED Lower Leg Clamp Assembly
G2 Replacement Leg Lock Knob (deep throat)
G2 Leg Lock Screw (deep throat)
G3 Leg Lock Cap Screw
G4 Leg Lock Hex Nut

H Bottom Leg Tube
H USED Bottom Leg Tube

I1 Rubber Foot
I2 Retractable Spike Foot

(not shown)

Editor note: Parts marked as USED are reconditioned and Only available as USED. Where there is a dual listing the one not showing USED is the NEW part.
Click on the numbered link to see the actual part picture.
The main casting, center column and leg braces are NOT interchangeable with later models or other 290 Versions.
