Bogen 3249 Monopod Identification
This monopod has several NON-interchangeable variations. The main characteristics are 4-leg tubes and 3-locking clamps.
The parts are not always interchangable between models. Parts list are shown with each variation below. Check the parts lists, diagrams and parts pictures carefully to ensure you get the correct part.

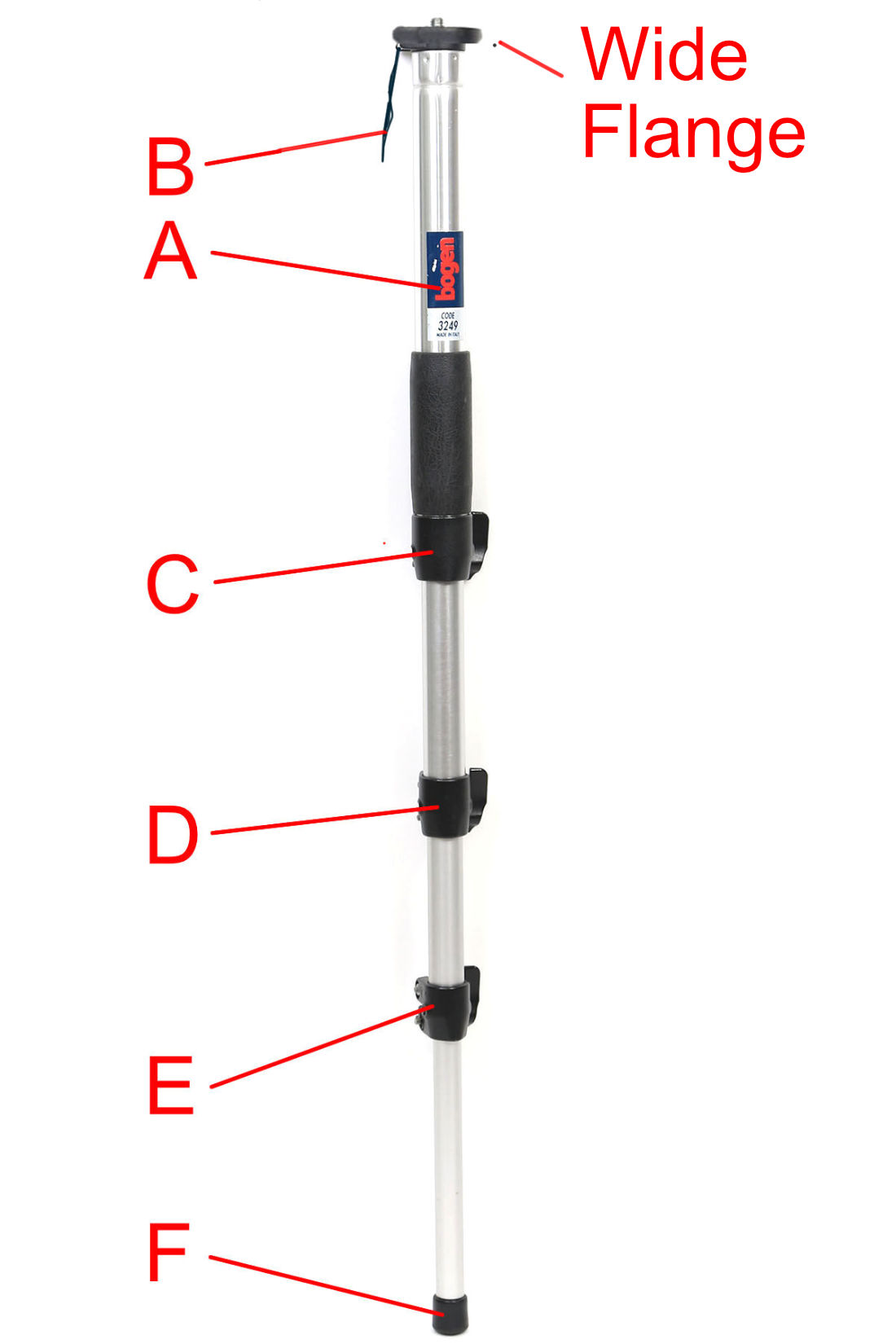

3249 Silver Monopod Version 1
Also known as Manfrotto 479-4
Characteristics: 4-leg tubes, 3-locking clamps, wide flange where camera mounts
A Top Silver Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note:
Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249 Silver Monopod Ver 4
AKA Manfrotto 079-4
Characteristics: 4-leg tubes, 3-locking clamps, NO flange where camera mounts
A Top Silver Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note:
Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249B Black Monopod Ver 1
Also called Manfrotto 479-4B
Characteristics: 4-leg tubes, 3-locking clamps, wide flange where camera mounts
A Top Black Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Black Leg Tube
H Lower Middle Black Leg Tube
I Bottom Black Leg Tube
Editor note:
Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.

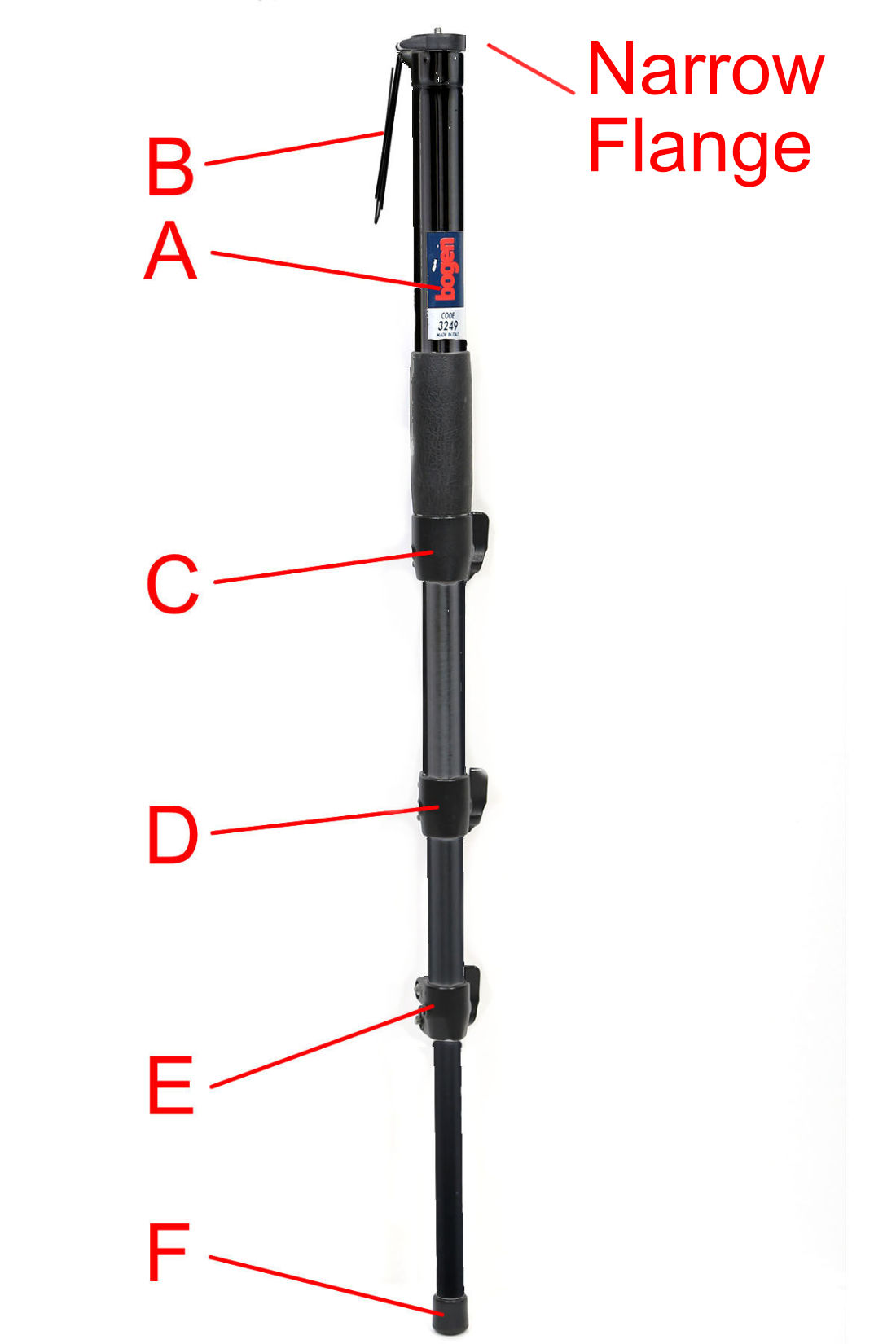

3249B Black Monopod Ver 3
AKA Manfrotto 079-4B
Characteristics: 4-leg tubes, 3-locking clamps, NO flange where camera mounts
A Top Black Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Black Leg Tube
H Lower Middle Black Leg Tube
I Bottom Black Leg Tube
Editor note:
Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249 Silver Monopod Version 1
Also known as Manfrotto 479-4
Characteristics: 4-leg tubes, 3-locking clamps, wide flange where camera mounts
A Top Silver Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249 Silver Monopod Ver 4
AKA Manfrotto 079-4
Characteristics: 4-leg tubes, 3-locking clamps, NO flange where camera mounts
A Top Silver Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249B Black Monopod Ver 1
Also called Manfrotto 479-4B
Characteristics: 4-leg tubes, 3-locking clamps, wide flange where camera mounts
A Top Black Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Black Leg Tube
H Lower Middle Black Leg Tube
I Bottom Black Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
3249B Black Monopod Ver 3
AKA Manfrotto 079-4B
Characteristics: 4-leg tubes, 3-locking clamps, NO flange where camera mounts
A Top Black Leg Tube
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Black Leg Tube
H Lower Middle Black Leg Tube
I Bottom Black Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
