Bogen 3249 Narrow Flange Monopod
Made about 1995-27-10
Also Called Manfrotto 079-4
Be aware that there are another versions of the 079-4 with 3- leg locks and a wide flange on the top where the camera connects. See It Here. If you have a 2- leg lock version then check here to see if it is a 3016 The parts are NOT interchangeable.
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

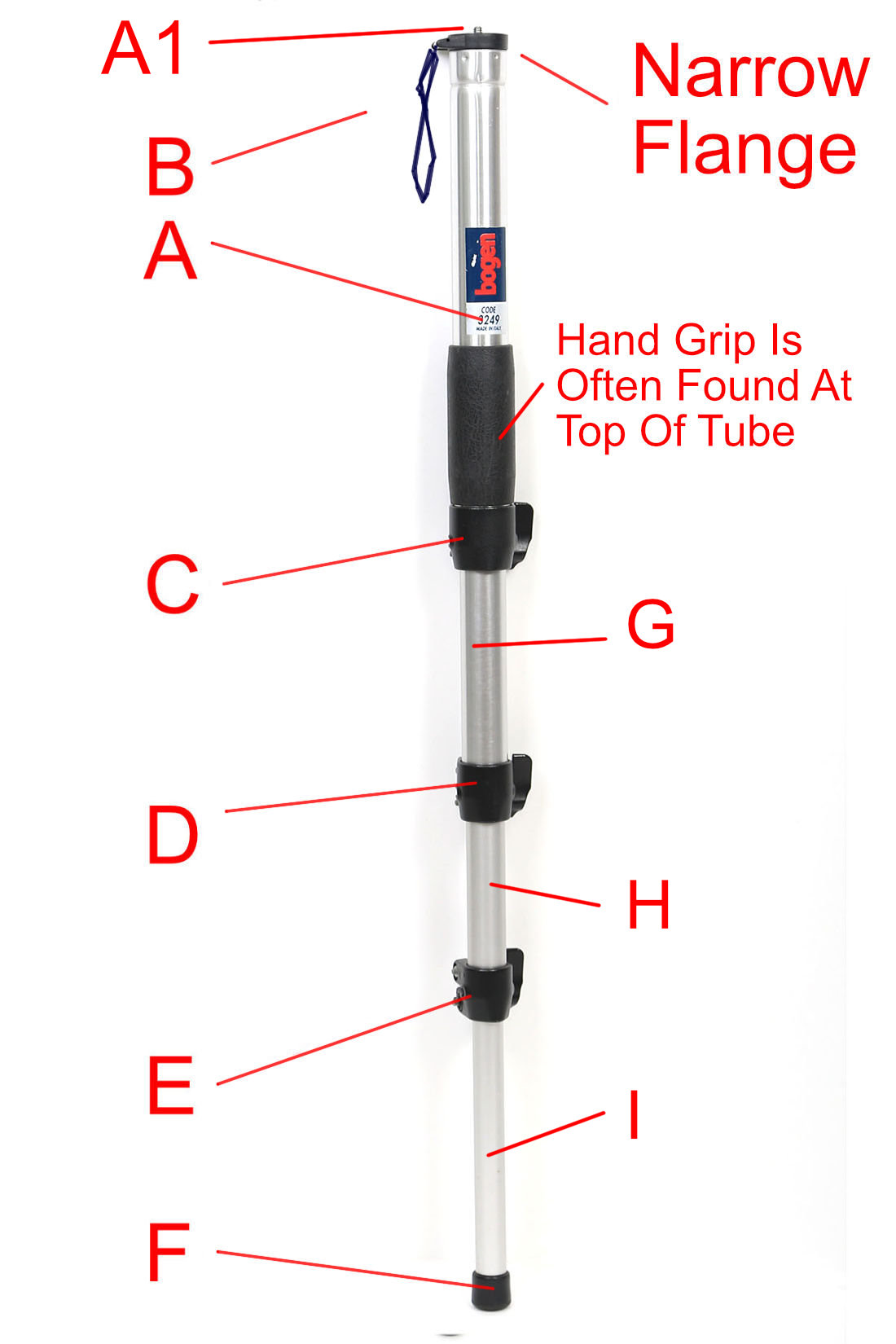

Silver Verson is shown for clarity.

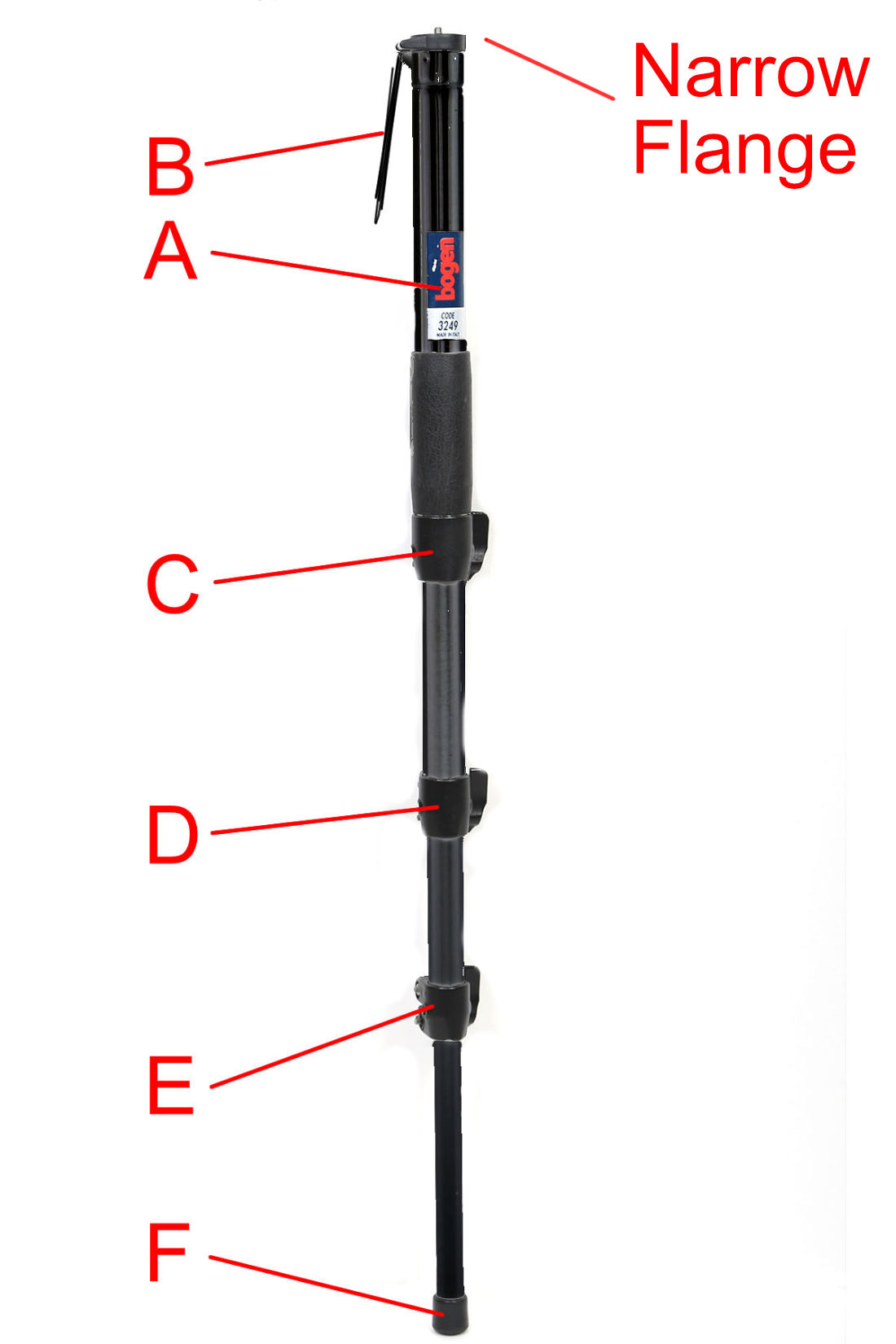

A Top Silver Leg Tube
A1 Rubber Pad
B Wrist Strap
C USED Single Spiral Upper Leg Lock
C1 Single Spiral Leg Lock Flipper
C USED Double Spiral Upper Leg Lock
C1 Double Spiral Leg Lock Flipper
C2 Nut Caps (set of 5)
D USED Single Spiral Upper Leg Lock
D1 Single Spiral Leg Lock Flipper
D USED Double Spiral Upper Leg Lock
D1 Double Spiral Leg Lock Flipper
D2 Nut Caps (set of 5)
E USED Single Spiral Upper Leg Lock
E1 Single Spiral Leg Lock Flipper
E USED Double Spiral Upper Leg Lock
E1 Double Spiral Leg Lock Flipper
E2 Nut Caps (set of 5)
F1 Rubber Foot (single)
F2 Retractable Spike Foot
G Upper Middle Silver Leg Tube
H Lower Middle Silver Leg Tube
I Bottom Silver Leg Tube
Editor note: Parts marked as USED are reconditioned and are functionally the same as new parts. Where there is a dual listing the one not showing the USED lablel is the NEW part.
Click on the numbered link to see the actual part picture. These parts are not necessarily interchangeable with the other models listed on this page. Leg tubes may be interchangeable, but variations between versions might render them shorter or tighter fitting that the actual part.
