Bogen 3193 All Versions
Made after 1991-02-25
Also called Manfrotto 350MVB.
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

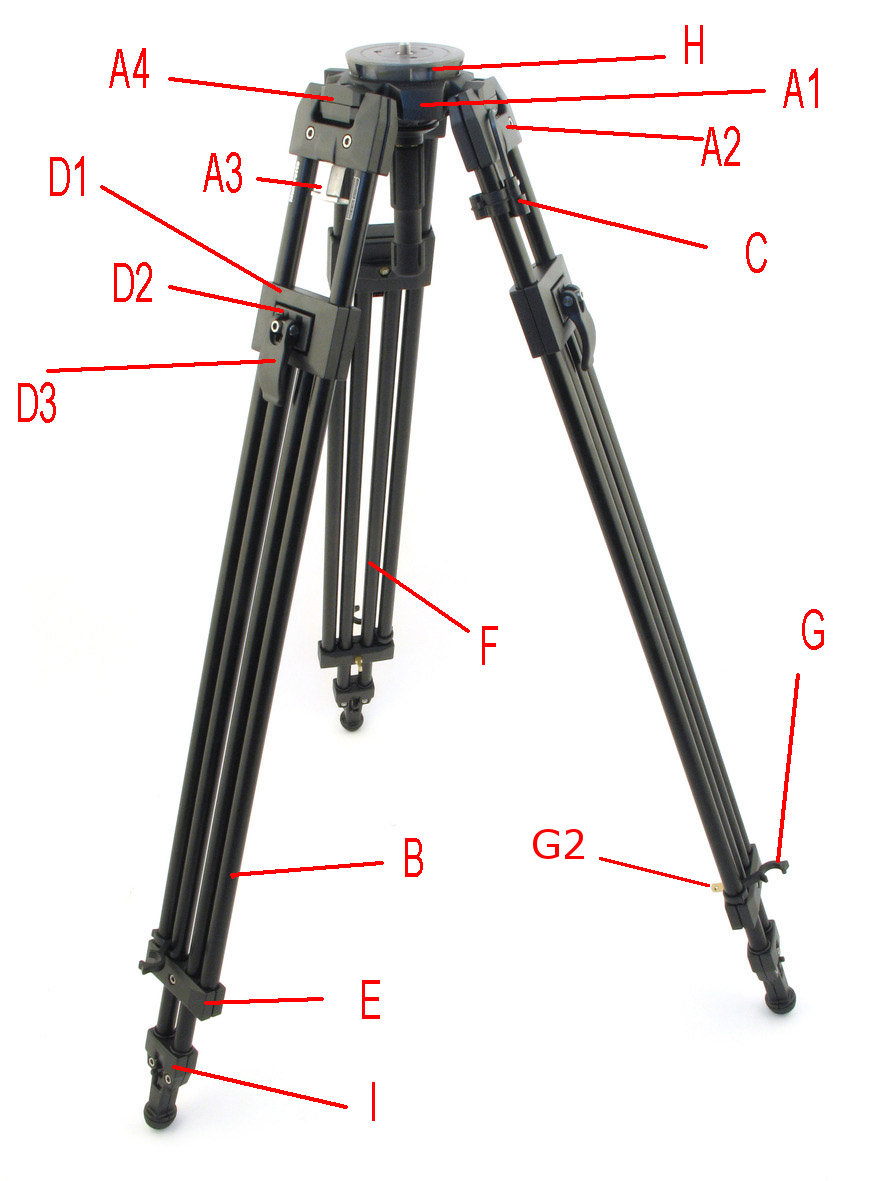

A1 Main Casting
A2 Leg Brace & Pivot Assembly
A2a Leg Brace & Pivot Assembly Screw & Locking Nut
A3 Leg Stopper
A4 Leg Pivot
B Upper Leg
C Clip & Wrench
D1 Leg Slider Assy
D2 Slider Block
D3 Slider Locking Lever
E Leg Yoke
F1 Bottom Leg Tube & Foot (not a stock item)
F2 Rubber Foot Cover
F3 USED Rubber Padded Foot
F4 Rubber Padded Feet, set of 3
G Leg Clip
H Ver 3 & 4 Ball Assembly 100mm
Click Here for parts for 500Ball
H1 Ball
H1 USED Ball
H2 Version Ball Tightening Knob
Editor note: There is no difference between versions 1, 3 and 4 except a name change on part A4 and D2. The Ball Assembly to hold the camera changed from version 1 to later versions. This tripod uses the same parts as 350B, except the leg tubes are silver instead of black.
