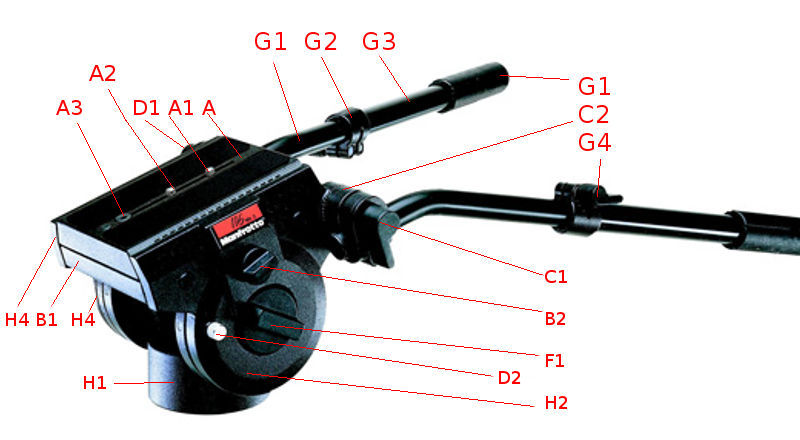

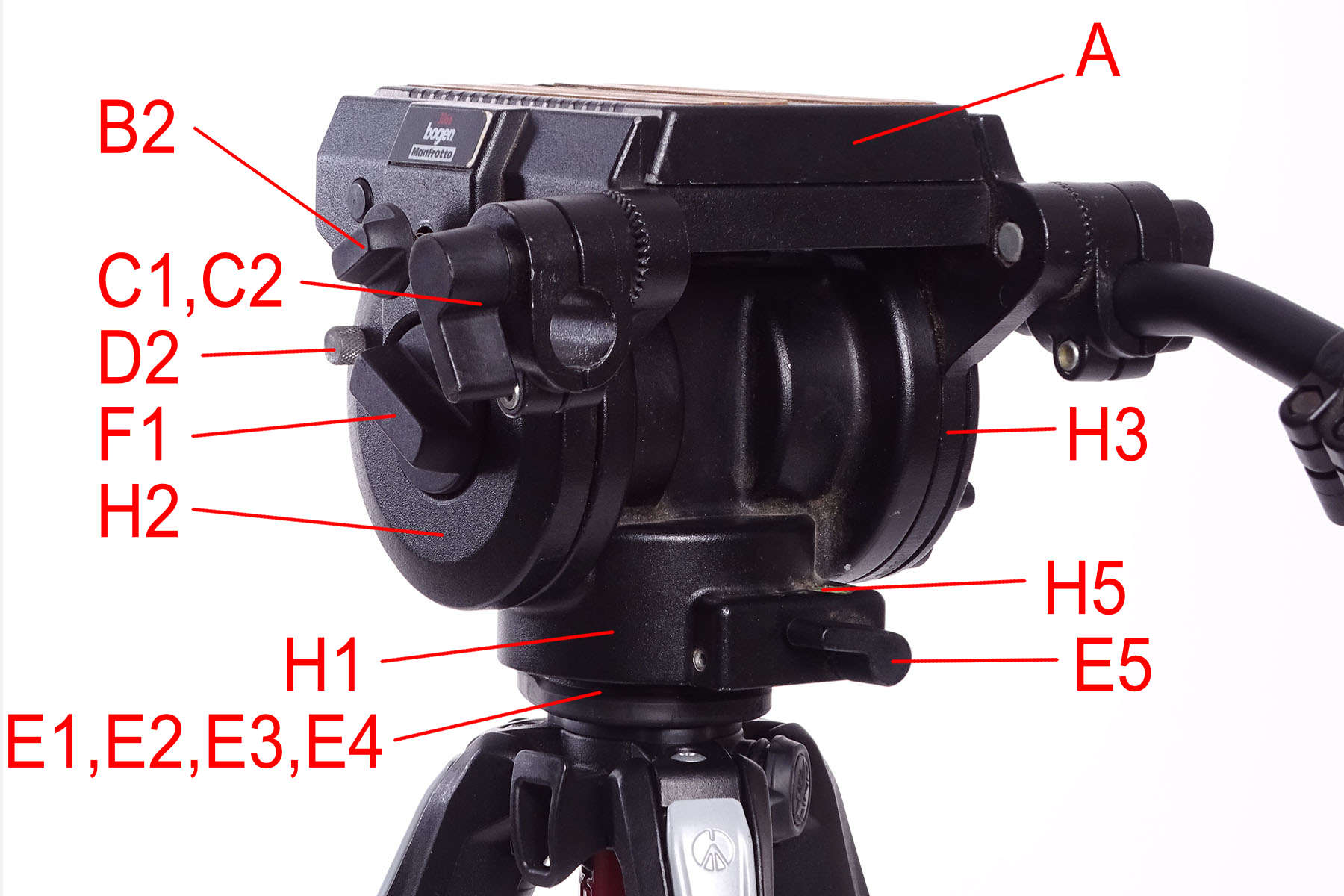

Bogen 3066 Version 8 Video Head

A Quick Release Plate (not available)
A1 3/8-16 Screw (set of 2)
A2 1/4-20 Screw (set of 2)
A3 Rubber Stopper
A4 Cork Pad
A4 Rubber Pad

B USED Top Plate
B2 USED Quick Release Lock Knob
B3 USED Quick Release Clamp & Knob

C1 USED Pan Handle Clamp Lock Knob
C1 Replacement Pan Handle Clamp Lock Knob
C2 USED Pan Handle Clamp

D1 Quick Release Lock Knob
D2 USED Retaining Screw

E1 USED Pan Collar
E2 USED Main Spindle Assy
E3 USED Bearing Stack
E4 Fluid Grease
E5 USED Pan Clamp Knob

G Pan Handle Assembly
G USED Pan Handle Assembly
G1 Pan Handle Extension Bar
G2 Pan Handle Clamp
G3 Pan Extension Handle

H1 Main Housing
H2 USED Left Side Assembly
H3 USED Right Side Assembly
H4 USED Right Side Bezel
H5 Bubble Level

H6 Hex Bolt (behind H4 Bezel)

H7 Bearings (behind H5 Bolt)

I Cable Clip of Handle

Editor note: There are older Versions for which we do not have parts lists. Versions 7 & 8 are interchangeable and the main differences that more parts were added to the verson 8 list. 3066 is the 3066 - which is not to be confused with the 116MK2. Click on the link to see the actual part picture.
