Bogen 3046 Version 1 also known as 028L
Bogen 3046 has silver leg tubes
Made sometime about 30-05-1990
Also called 3246 for black leg Version
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new. Not all parts are interchangeable between Versions.
This tripod DOES NOT have an extension that make it taller, this was an add on, that then became a feature in later models.

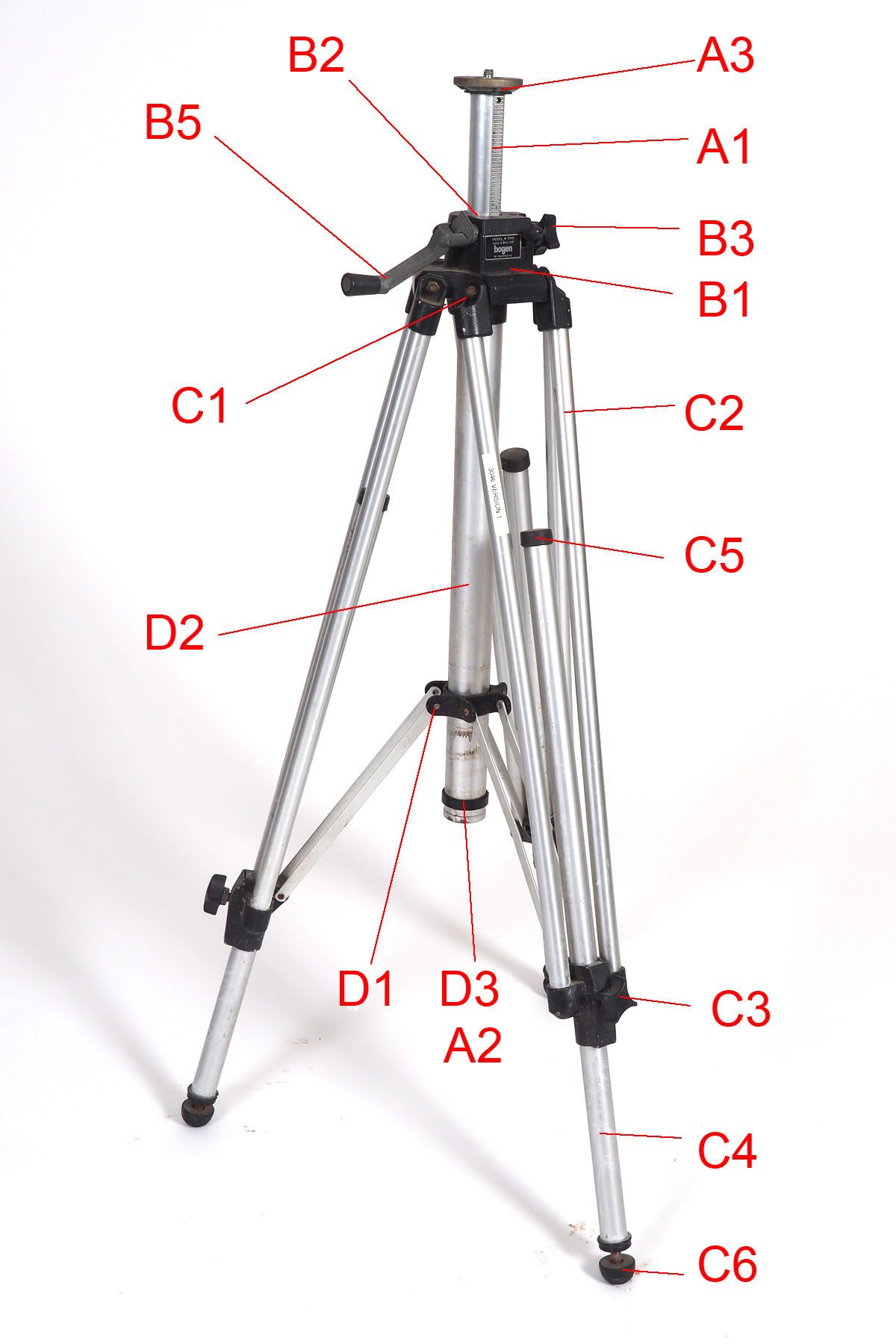

A1 USED Round Center Column
A2 USED Center Column Cap
A2 Center Column Cap
A3 Center Column Grub Screw
A3 Center Column Grub Screw - 5 Pack
B1 USED Main Casting
B2 USED Main Casting Cover
B2 Main Casting Cover
B3 USED Long Center Column Lock Knob
B4 Bubble Level
B5 USED Center Column Crank
C1 USED Leg Axle
C2 USED Upper Leg Assembly with Exposed Bolt
C3 USED Leg Locking Knob & Key
C3 Leg Locking Knob & Key
C4 Lower Leg Tube & Foot
C4 USED Lower Leg Tube & Foot
C5 Single Tube End Cap
C5 5 Pack - Tube End Caps
C6 Spike Foot Only - No Longer Made
D1 USED Leg Spider
D2 USED Center Column Guide Tube
D3 USED Center Tube Bezel
Editors Notes: The main casting parts and leg braces are Only interchangeable with VERSION 2 models. The upper leg assembly has variants where the axle bolts are hidden: these parts are not interchangeable between models. Center Column crank is Only Compatible with the Version 2 model. This Version has one leg extension, other Versions may have two.
