3036 Version 4-Aluminum Tripod

Made after 1993-02-12
also called Bogen 3035, 3037 and Manfrotto 075

USED parts are marked as USED, parts not marked as USED are new. Not all parts are interchangeable between versions. Black version shown as illustration.

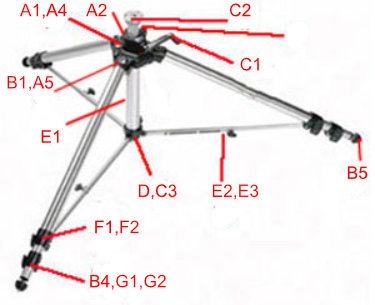

Old Bogen 3236 tripod

A1 Main Casting Top Plate
A1 USED Main Casting Top Plate
A2 USED Main Casting Bottem Plate
A3 Casting Lock Knob
A3 USED Casting Lock Knob
A4 Bubble Level
A5 USED Leg Tensioner

B1 USED Leg Brace
B2 USED Upper Leg
B3 USED Middle Leg
B4 USED Lower Leg, Clamp & Foot Assy
B5 Rubber Foot

C1 USED Crank with Gear
C2 USED Round Center Column
3036 & 3236 Versions 1,2,3, 4 old style use round center column that is 30mm dia and 4 teeth per 10mm length
C3 USED Center Column Plug
C5 USED Center Column Cover

E1 Center Column Rod
E1 USED Center Column Rod
E2 Spider Tension Knob
E2 USED Spider Tension Knob
E3 USED Spider Assembly

F1 USED Double Spiral Upper Leg Lock
F2 USED Upper Leg Lock Snap Lever (not longer avaiable)

Editor note:Check the inside of the leg lock flip lever. Earlier versions have a single spriral and later versions will have a double Spiral, as shown.
Leg lock comparison
G1 USED Double Spiral ower Leg Lock
G2 USED Lower Leg Lock Snap Lever (not longer avaiable)


Editor note: Not all parts are interchangeable between versions. Center Columns, Elevation cranks and gears and main castings are not interchangeable between versions. You can completely replace the leg lock assembly on version 4 with the version 3 leg locks. The snap lock levers are NOT interchangeable.

Click on the link to see the actual part picture. The main casting parts and leg braces are Only interchangeable with earlier VERSIONs. The upper leg assembly has variants where the axle bolts are hidden: these parts are not interchangeable between models. Center Column crank is Only Compatible with the version 2 model. This version has one leg extension, other versions may have two. 3036 ver 4 and 3236 ver 4 can use parts interchangably. 3236 is he same tripod, Only with black leg tubes.
