3030a Tripod

Made around 1998-07-01
Also called Manfrotto 074 ver 5

Bogen 3030a Tripod is not the same as the 3030 head. It seems to be a variation of a 3033 ver 5 but with a plastic crank and removable aluminum center column screw. 030 ver 5 has an single unit crank and screw
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new. Not all parts are interchangeable between versions of 3030a or the 3036 or 075 tripods

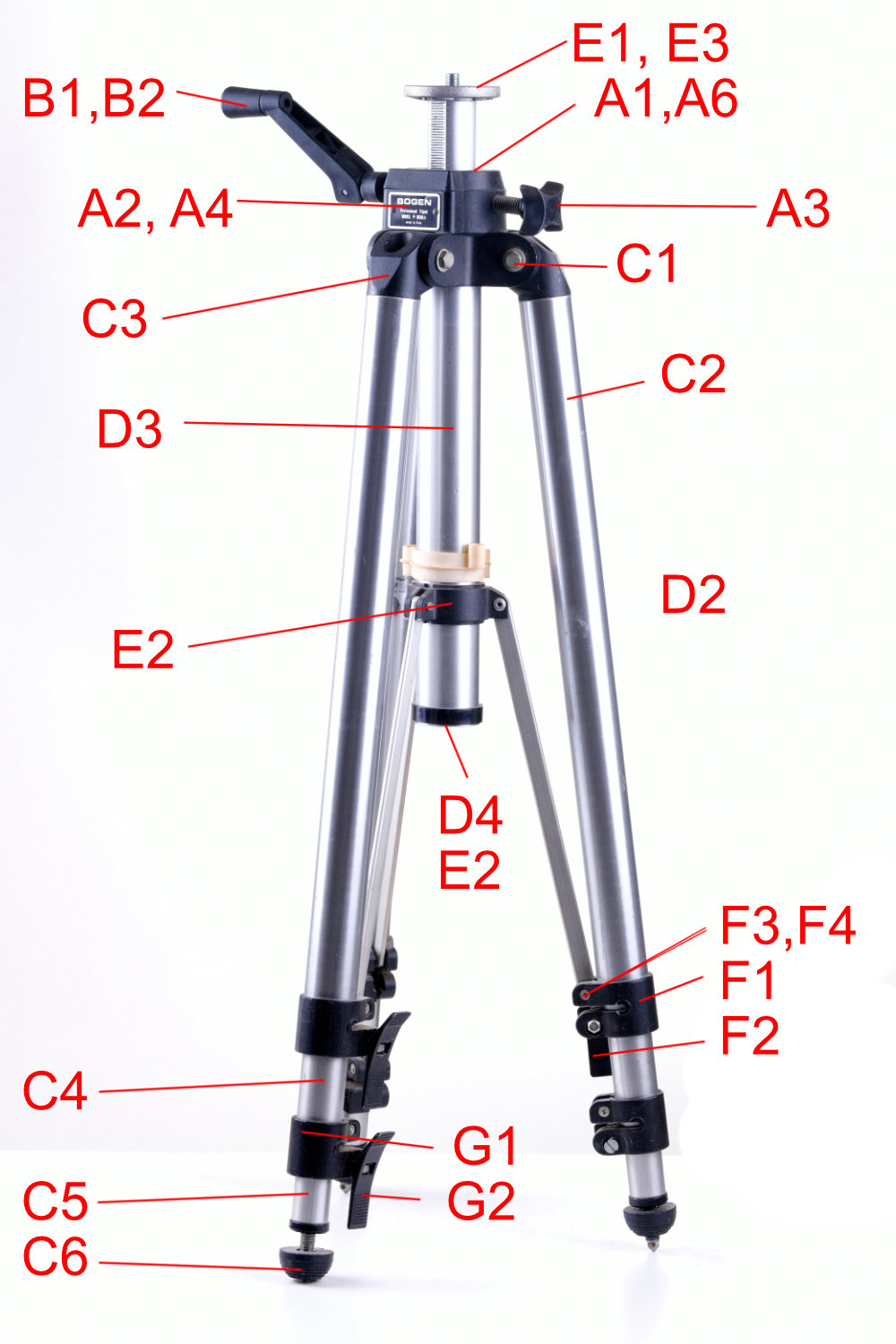

Old Manfrotto and Bogen 3030a or 074 tripod
A1 USED Main Casting Top Plate
A2 USED Main Casting Bottom Assy - not available
A3 USED Lock Knob
A4 Bubble Level

B1 USED Plastic Crank
B2 USED Aluminum Gear

C USED Complete Leg Assy

C1 USED Leg Axle
C2 USED Leg & Brace Assy
C3 Upper Leg Tube (Only available in part C2)
C4 USED Middle Leg Tube
C5 Lower Leg Tube
C5 USED Lower Leg
C6 Rubber Spike Foot

D1 USED Spider Assy
D2 USED Lock Knob (not shown on diagram)
D3 USED Center Column Tubing
D4 USED Center Column Tubing Bezel

E1 USED Round Center Column
E2 USED Center Column Plug
E3 Center Column Grub Screw
E3 Center Column Grub Screw - 5 Pack

F1 Upper Leg Clamp
F2 Snap Lever

F3 Screw for Spider Strut
F4 Nut for Spider Strut

G1 Lower Leg Clamp
G2 Snap Lever



Editor note: All Leg parts are interchangeable between 3030 versions 2, 3 & 5. Most other parts are not interchangeable between models because of part number differences. Cranks and gears (B1, B2) are completely diffrent. Parts marked as USED are reconditioned and Only available as USED. Where there is a dual listing the one not showing USED is the NEW part.
Click on the link to see the actual part picture.
