3021N Version 3 Aluminum Tripod
Made after 2004-09-02
Also called Manfrotto 055CL
This version has different parts from the 055MF, 055XB, 055XDB and 055XPROB
A2 USED Center Sliding Block
B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
C1 USED Leg Brace
C2 USED Leg Extender Release Button
C4 USED Leg Leg Tube
D USED Center Column
D1 Plug Spring
D2 USED Center Column Plug
D3 Grub Screw Single
D3 Grub Screw 5 Pack
3 grub screws required
E1 USED Upper Leg Clamp Assy
E2 Upper Snap Lever
F USED Middle Leg Tube
G1 USED Lower Leg Clamp Assy
G2 Lower Snap Lock Lever
H USED Lower Leg Tube
I1 Rubber Foot (single)
I1 Rubber Foot (set of 3)
(standard on this tripod)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)
I2 Spike Feet Accessory (set of 3)
(shown on picture)
L Strap Loop
L USED Strap Loop
Editor note: All parts are interchangeable between versions 3 & 4 EXCEPT the Leg Clamps and snap levers. Those on version 3 use different snap levers than on version 4. You can completely replace the Leg Clamp assembly on version 4 with the version 3 Leg Clamps. The snap lock levers are NOT interchangeable.

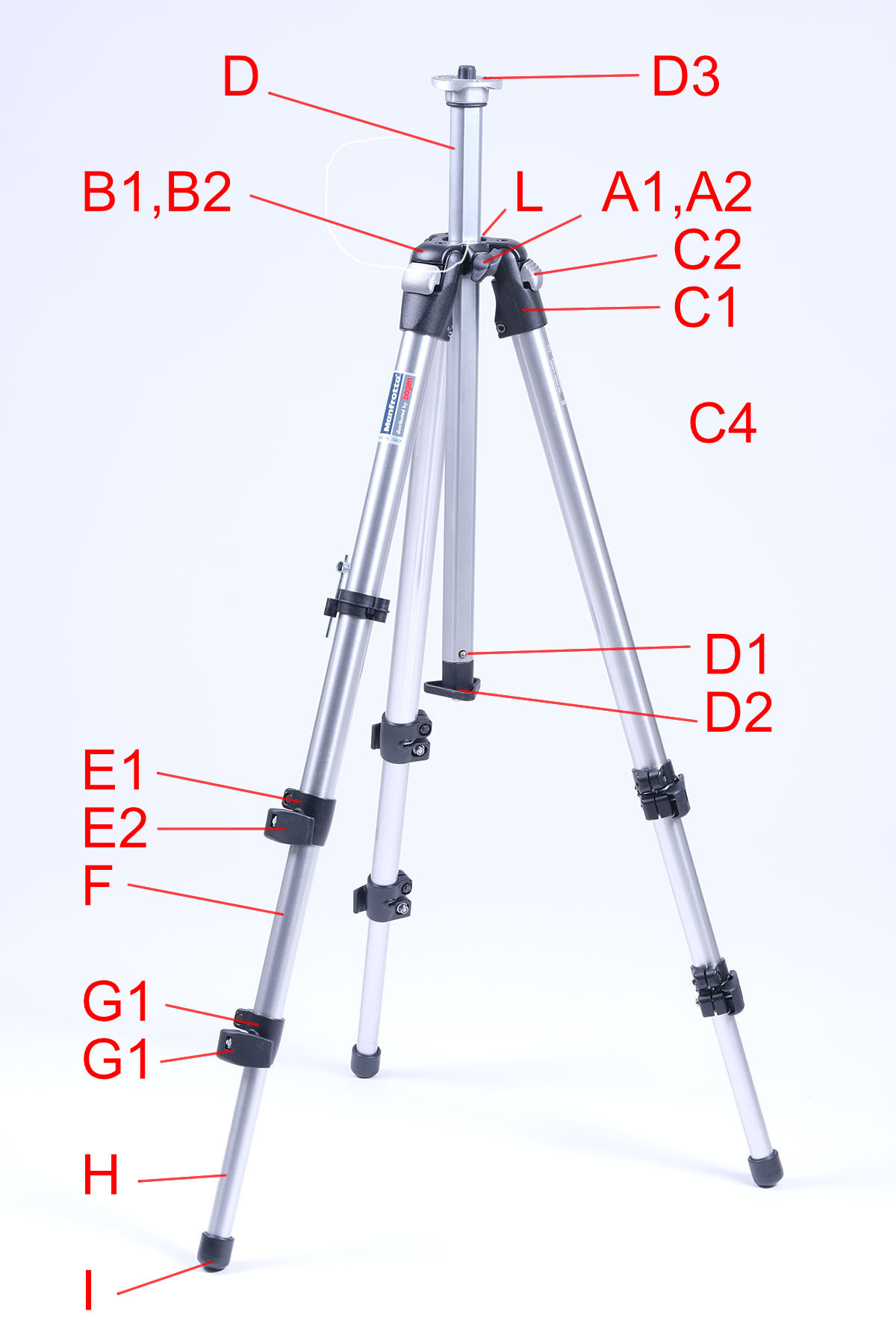

Click on the numbered link to see the actual part picture.
