3001BD Version 3 - Aluminum Tripod
Made after 2004-09-02
Also known as Manfrotto 190CLB
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

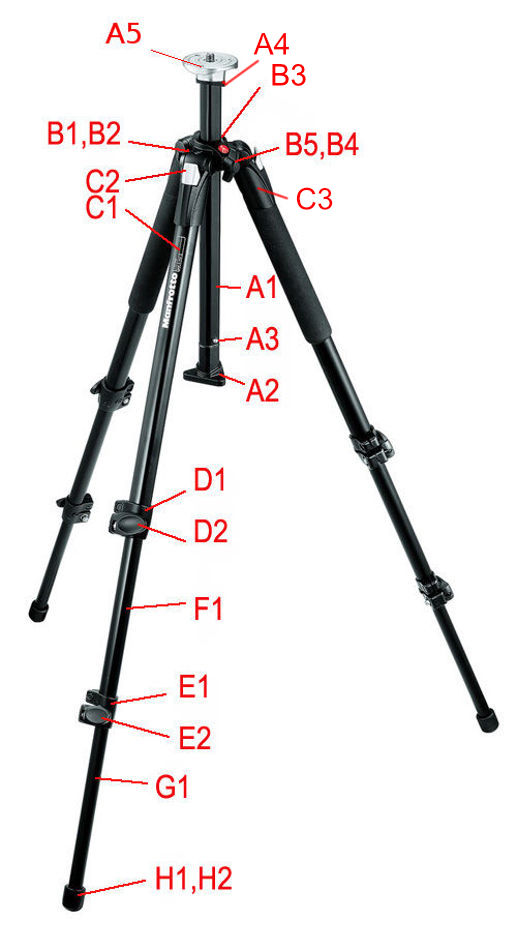

A1 USED Center Column
A2 Center Column Plug
A3 USED Center Column Spring
A4 Rubber Bumber
A5 Grub Screw Single
A5 Grub Screw 5 Pack
3 grub screws required
B1 USED Main Casting Top Plate
B2 USED Main Casting Bottom Plate
B3 Strap Loop
B3 USED Strap Loop
B4 USED Lock Shoe
B5 USED Lock Knob
B5 Substitute Lock Knob
C1 USED Upper Leg Tube
C2 Leg Release Button
C2 USED Leg Release Button
C3 USED Leg Brace
D1 USED Upper Leg Clamp
D2 Repl Snap Lever
D3 Clamp Screw
D4 T25 Wrench
E1 Lower Leg Clamp
E2 Repl Snap lever
E3 Clamp Screw
F1 Black Middle Leg Tube
F1 USED Black Middle Leg Tube
G1 Black Lower Leg Tube
H1 USED Rubber Foot
Editor note: All parts are interchangeable between versions 2 & 3 EXCEPT the Leg Clamps and snap levers. Those on version 2 use different snap levers than on version 3. You can completely replace the Leg Clamp assembly on version 2 with the version 3 Leg Clamps. The snap lock levers are NOT interchangeable. Parts marked as USED are reconditioned and Only available as USED.
Click on the numbered link to see the actual part picture.
