2916QR Double Ball Joint Head with Quick Release
Made after 2000-05-30
Also callled Manfrotto 155RC
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

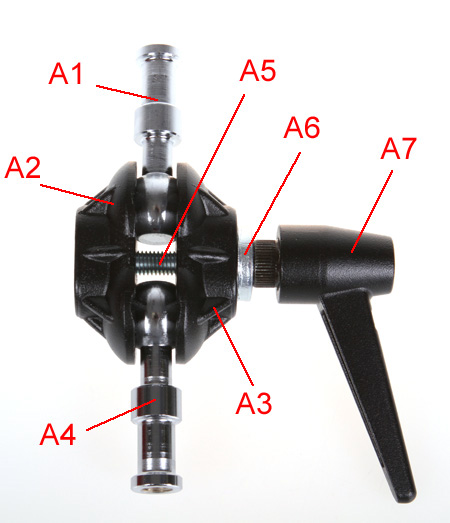

A 155BKL Double BallJoint Head
A1 RC Stud Screw Ball (not a stock item)
A2 Side Plate
A3 Side Plate with Hole
A4 1/4 Female Screw Ball
A5 Bolt & Bearing
A6 Washer
A7 Ball Lock Knob
B1 Quick Release 1/4-20 Screw
B2 Quick Release 3/8 Screw - Replaced by 200PL-14
B3 Quick Release 1/4 Anti-Rotate
B4 1/4 Thumbscrew
B5 3/8 Thumbscrew
C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring (not shown)
C4 QR Cam Pivot Screw
C5 Safety release Lever (not a part)
C6 QR Plate Receiver
C6a QR Receiver Screw
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
A 155BKL Double BallJoint Head
A1 RC Stud Screw Ball (not a stock item)
A2 Side Plate
A3 Side Plate with Hole
A4 1/4 Female Screw Ball
A5 Bolt & Bearing
A6 Washer
A7 Ball Lock Knob B1 Quick Release 1/4-20 Screw
B2 Quick Release 3/8 Screw - Replaced by 200PL-14
B3 Quick Release 1/4 Anti-Rotate
B4 1/4 Thumbscrew
B5 3/8 Thumbscrew
C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring (not shown)
C4 QR Cam Pivot Screw
C5 Safety release Lever (not a part)
C6 QR Plate Receiver
C6a QR Receiver Screw
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
