190XDB Version 1 Aluminum Tripod

See 190XDB ver 1
Manufacturers Parts List
>

A1 Center Column Lock Knob
A2 Center Column Brake Shoe
A2 USED Center Column Brake Shoe

B1 Main Casting Top Plate
B1 USED Main Casting Top Plate
B2 Main Casting Bottom Plate (not a stock item)

C USED Complete Leg Brace Assembly

C Leg Brace & Upper Leg Tube
C USED Leg Brace & Upper Leg Tube
D Center Column Assy
D USED Center Column Assy
D1 Center Column Plug
D2 Grub Screw Single
D2 Grub Screw 5 Pack
3 grub screws required
D3 Rubber Spacer

E1 Upper Leg Clamp Assy
E1 USED Lower Leg Clamp
E2 Upper Lock Knob

F Black Middle Leg Tube
F USED Black Middle Leg Tube

G1 Lower Leg Clamp Assy
G2 Lower Lock Knob

H Lower Leg Tube
H1 USED Lower Leg Tube
I1 Rubber Foot (set of 3)
I2 Spike Feet Accessory (set of 3)
I3 Suction Cup Feet Accessory (set of 3)

J Torx Wrench included with part E1 & G1)

L Strap Loop
L USED Strap Loop

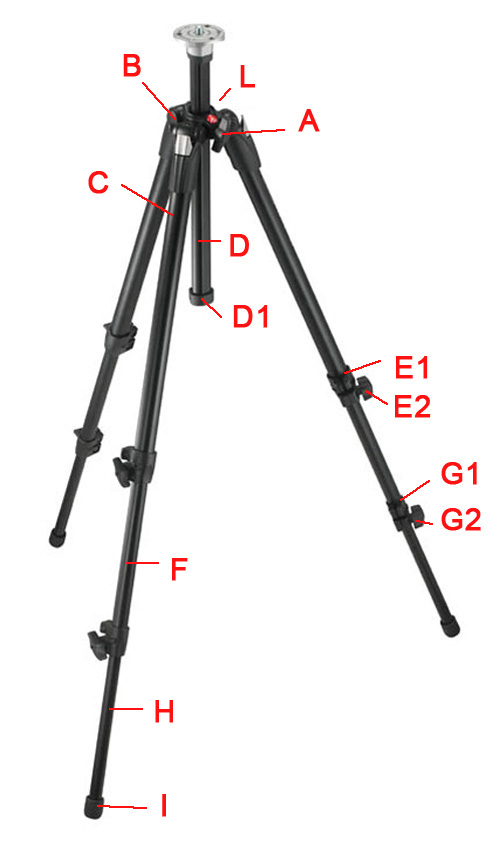

Editor note: Part C2 is different on version 1 and changes on version 2, 3 and 4. Click on the numbered link to see the actual part picture.
