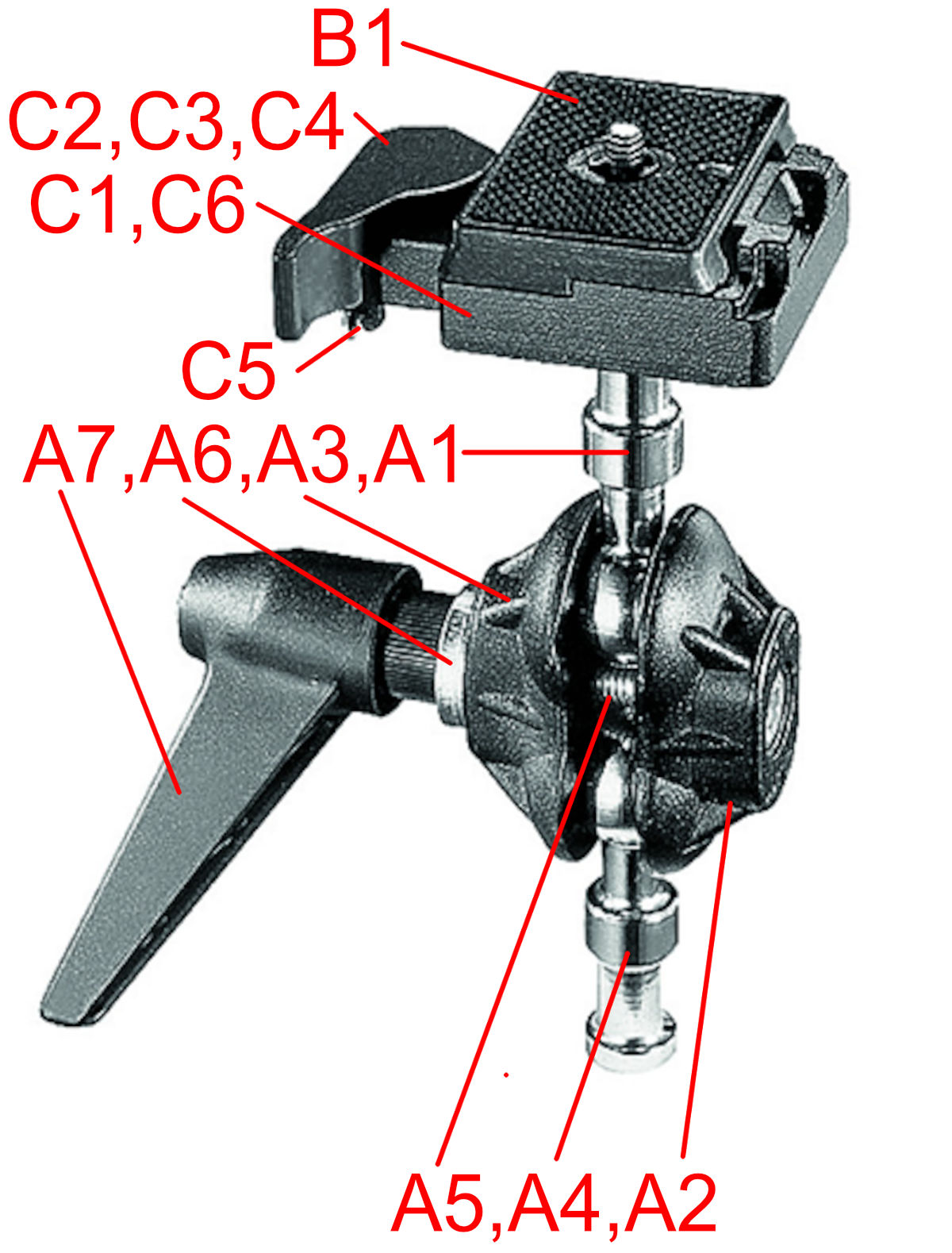

155RC Double Ball Joint Head with Quick Release

A 155RC Double BallJoint Head w/ Quick Release

A1 RC Stud Screw Ball
A2 Side Plate
A3 Side Plate with Hole
A4 1/4 Female Screw Ball
A5 Bolt & Bearing
A6 Washer
A7 Ball Lock Knob

B1 Quick Release 1/4-20 Screw
B2 Quick Release 3/8 Screw - Replaced by 200PL-14
B3 Quick Release 1/4 Anti-Rotate
B4 1/4 Thumbscrew
B5 3/8 Thumbscrew

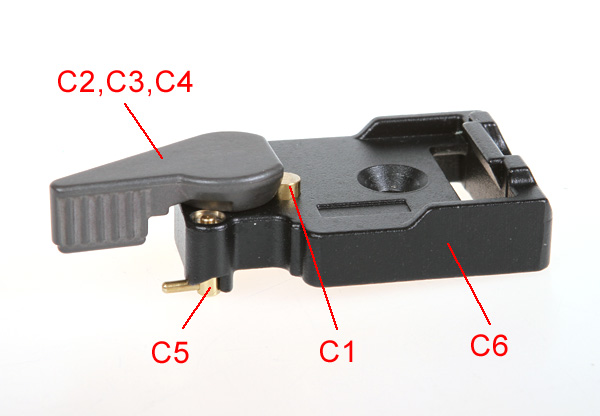

C1 QR Safety Catch
C2 QR Cam Thumb Lever
C3 QR Cam Return Spring (not shown)
C4 QR Cam Pivot Screw
C5 Safety release Lever (not a part)
C6 QR Plate Receiver
C7 QR Receiver Screw (not shown)

Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.

See 155RC
Manufacturers Parts List
