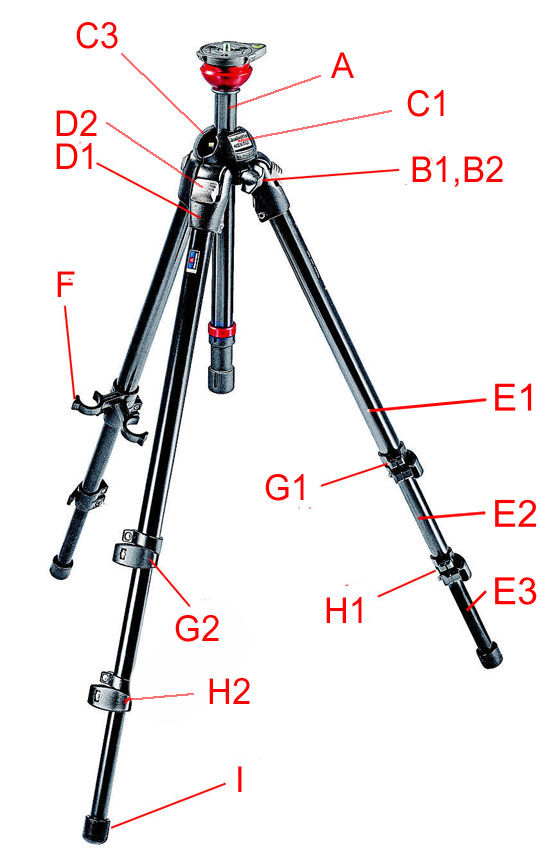

756B Version 2 - Aluminum Tripod
Made after 2004-09-02
For serial number from A0001746
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
A Center Column Assembly
A1 Top Leveler Plate
A2 Center Shaft
A3 Inside Ball
A4 Center Column
A5 Leveler Plate Tightening Knob
B1 Center Column Lock Knob
B2 Center Sliding Block
C1 Center Column Capstan Left (protrudes on the bottom)
C2 Friction Bearing
C3 Center Column Capstan Right(recessed on the bottom)
C4 Main Casting Top Plate
C5 Main Casting Bottom Plate
D1 Leg Brace
D2 Leg Extender Release Button
E1 Upper Leg Tube
E2 Black Middle Leg Tube
E2 USED Black Middle Leg Tube
E3 Lower Leg Tube
E3 USED Lower Leg Tube
F Leg Clips - 2 pack
G1 Upper Leg Clamp Assy
G2 Upper Snap Lever
G3 Clamp Screw
G4 T25 Wrench
H1 Lower Leg Clamp Assy
H2 Lower Snap Lock Lever
H3 Clamp Screw
H4 T25 Wrench
I Rubber Foot
Editor note: All versions are interchangeable
Click on the link to see the actual part picture.
