Bogen 560B Video Monopod

Made after 2006-06-06
For Serial Number A0516988

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

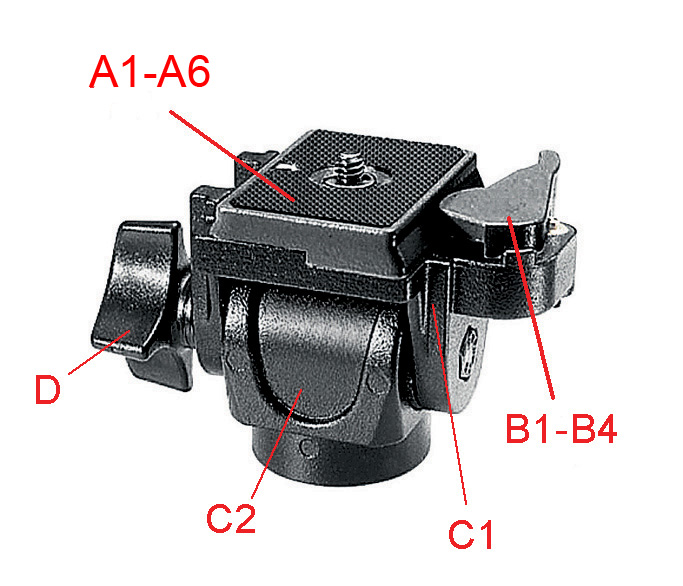

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew
B1 QR Cam Thumb Lever
B2 QR Cam Return Spring
B3 QR Cam Pivot Screw
B4 QR Safety Locing Pin
C1 QR Mount (not a stock item)
C2 Base Unit (not a stock item)
D Tension Screw (not a stock item)

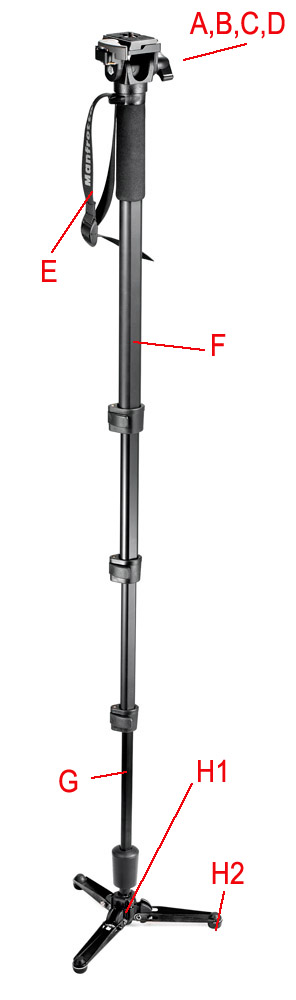

E Wrist Strap
F Leg Assembly
(not a separate part)
G Lower Leg and Ball Assembly (not a separate part)
Parts F & G are combined in NEW part FG -complete stick assy
Click Here to Order
H1 Foot Assembly -Discontinued
This assembly was replaced by R561,10
H2 Rubber Pads


Editor note:
