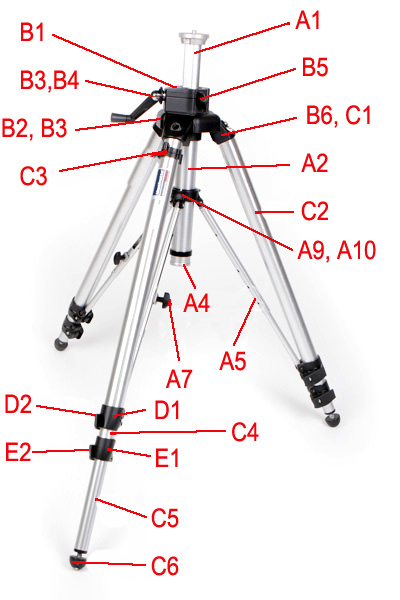

475 Version 3 - Silver Aluminum Tripod
Made after 2004-09-02
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part. This tripod not compatible with parts from the 075, 075B
A1 Silver Center Column
A2 Center Column Tubing
A3 USED Center Column Tubing Bezel
A4 Center Column Plug
A5 Spider Arm
A6 Lower Brace Tube
A7 Brace Lock Knob
A8 Upper Brace Tube (not a stock item)
A9 Spider Assy with Arms
A10 Spider Locking Knob
B1 Main Casting Top Plate
B2 Main Casting Bottom Plate
B3 Gear
B3 USED Gear
B4 Elevation Crank
B4 USED Elevation Crank
B5 Lock Knob
B6 USED Leg Brace Mount
B8 Top Plate Screws - set of 3
B9 Bubble Level
C1 Leg Brace
C2 Upper Leg
C3 Cable Clip
C4 Middle Leg
C5 Lower Leg Assy
C6 Rubber foot
D1 Upper Leg Clamp
D2 Upper Leg Clamp Snap Lever
E1 Lower Leg Clamp
E2 Lower Leg Clamp Snap Lever
Editor note: All parts are interchangeable between Versions 2 & 3, EXCEPT the Leg Clamps and snap levers. Those on Version 3 use different snap levers than on Version 2 and 4. You can completely replace the Leg Clamp assembly on Version 4 with the Version 3 Leg Clamps. The snap lock levers are NOT interchangeable.
