Bogen 3262QR Version 2

Made after 1994-01-11
Also called 352RC

USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

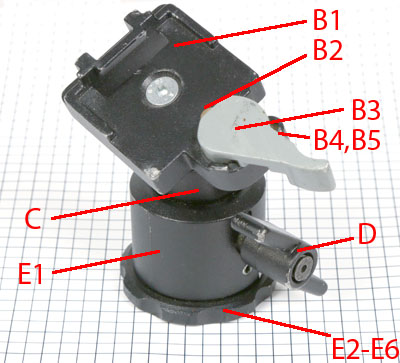

A1 Quick Release 1/4-20 Screw
A2 Quick Release 3/8 Screw - Replaced by 200PL-14
A3 Quick Release 1/4 Anti-Rotate
A4 Quick Release 3/8 Anti-Rotate
A5 1/4 Thumbscrew
A6 3/8 Thumbscrew

B1 Top Plate Assembly
B1a QR Receiver Screw
B2 USED QR Safety Catch
B3 QR Cam Thumb Lever
B4 QR Cam Return Spring
B5 QR Cam Pivot Screw

C Ball (not a stock item)

D Main Control Knob (not a stock item)

E1 Ball Housing (not a stock item)
E2 Ball Tensioner (not a stock item)
E3 Tension Rod (not a stock item)
E4 Spring & Pin (not a stock item)
E5 Main Spring & Base (not a stock item)
E6 Main Casting (not a stock item)



Editor note:All parts are compatible with version 5.
