Bogen 3221 Version 3 Black Tripod
Bogen 3221 Version 3 parts. This style was any 3021 made with silver tubes, or 3221 with black tubes.
All parts supplied are for the silver tripods unless otherwise noted. USED parts are marked as USED, parts not marked as USED are new.

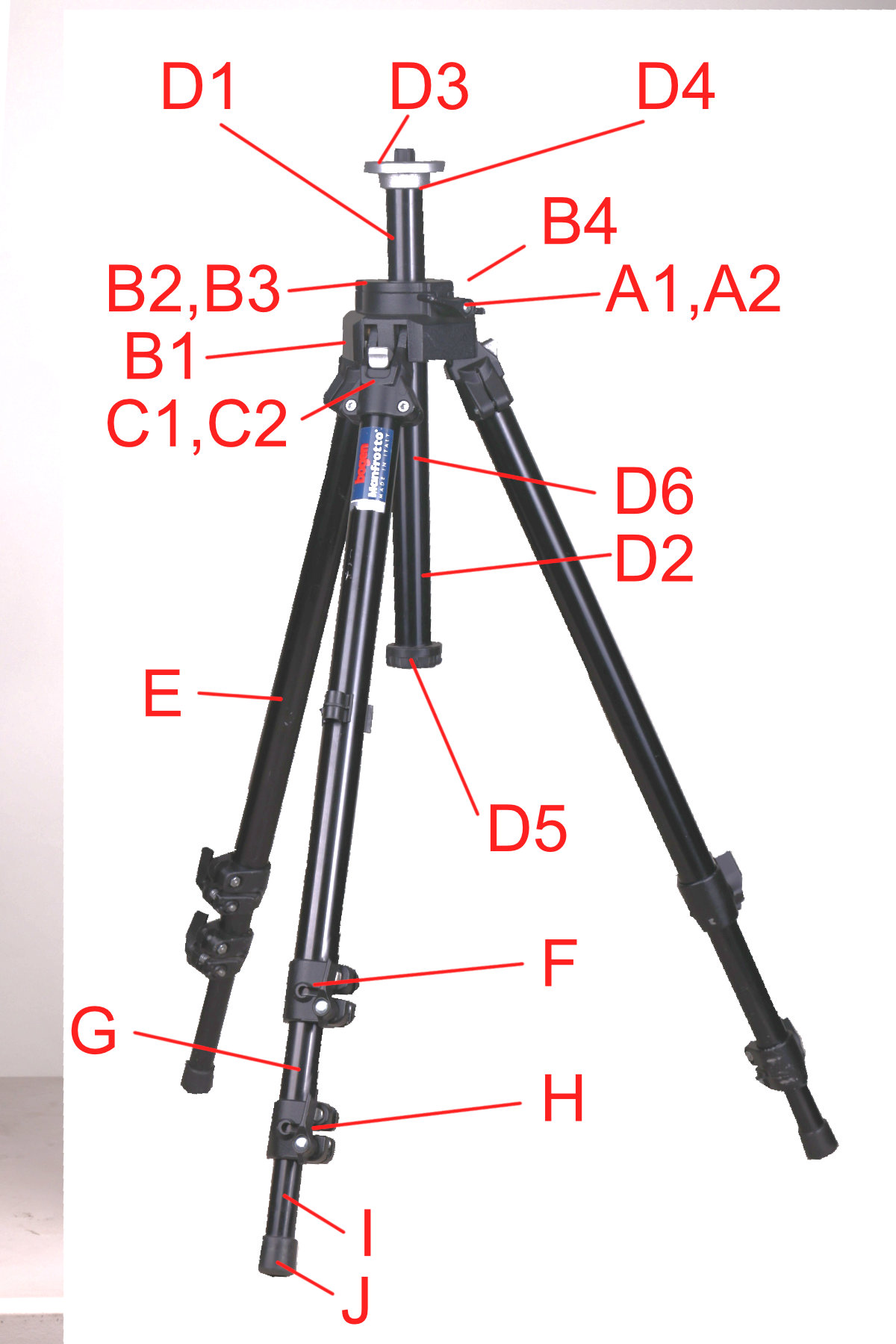

Silver Version shown for clarity
A (not shown)
B USED Main Casting Assembly
B1 Center Column Locking Shaft & Brake (not available separately, Only sold with Part B assembly)
B2 Center Column Lock Knob
B2 USED Center Column Lock Knob
B3 USED Main Casting Top Cover
B3b USED Top Plate Screws
B4 USED Main Casting Body (not available separately)
B5 USED Leg Stopper
B6 Screw-in Strap Lanyard
C USED Leg Brace with 2 Screws
C2 Leg Brace Release Button
C2 USED Leg Brace Release Button
D USED Long Black Center Column
D USED Short BLack Center Column
D USED Short Black Center Columnsion
D USED Short Black Center Column Extension
D1 Center Column Grub Screw
D1 Center Column Grub Screw - 5 Pack
D2 Center Column Rubber Cushion - 2 pack
D3 USED Center Column Rubber Cap
D4 USED Center Column Joining Shim
E USED Black Upper Leg Tube
F USED Upper Leg Lock
F USED Upper Leg Lock with Metal Levers
F USED Upper Leg Lock with Plastic Levers
F1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
F2 Nut Caps (set of 5)
G USED Black Middle Leg Tube
H USED Lower Leg Lock with Metal Levers
H USED Lower Leg Lock with Plastic Levers
H1 Plastic Double Spiral Leg Lock Flip Lever
Replaces both metal and plastic levers
H2 Nut Caps (set of 5)
I USED Black Bottom Leg Tube
J1 Rubber Feet (set of 3)
J2 Retractable Spike Feet (set of 3)
J2 Suction Cup Feet (set of 3)
K Cable Clip & Plastic Wrench
L Strap Lanyard
L2 Tripod Strap
(not shown)
Editors Notes: The main casting parts and leg braces are NOT interchangeable with later models.
