Bogen 3063 Version 8
Made before 1995-20-05

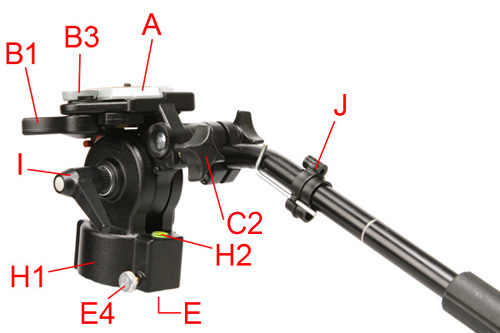

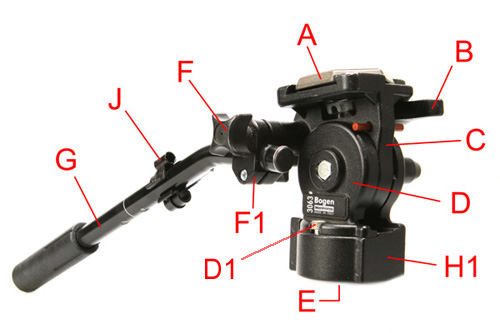

Bogen 3063 video head, also called Manfrotto 136. Version 8 parts B1, B4 and B5 are different from Version 9
USED parts are marked as USED, parts not marked as USED are new.
A1 1/4 Quick Release Plate
A2 3/8 Quick Release Plate
A3 1/4 Architectural Quick Release Plate
A4 1/4 Video Quick Release Plate
A5 1/4 Low Profile Quick Release Plate
A5 3/8 Low Profile Quick Release Plate
A6 1/4 QR Replacement Screw
A7 3/8 QR Replacement Screw
B1 Quick Release Thumb Lever
B2 QR Release Return Spring
B3 QR Cam
B4 QR Safety Pin
B5 QR Safety Lock Button
B6 QR Release Pivot Screw
C QR Receiver Plate & Tilt Assembly
C2 Tilt Screw
Also available on part C assy)
D Side Plate
D1 Side Plate Screw
E1 Pan Base Plate
E2 Pan Base Clamp
E3 Pan Fluid Disk
E4 Pan Lock Screw
E5 Screw and Bearings
E6 Bearings Only
F Pan Bar Clamp Knob
F1 Pan Bar Clamp
G Pan Bar Assembly
H1 Main Housing
H2 Bubble Level
I Main Pan Control Knob
J Cable Clamp
Editor note:All parts are compatible with version 8 and 9 EXCEPT B1, B2 and B5.
