2935 Two Section Articulated Arm
Made after 1993-07-23
Also called Manfrotto 196
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.

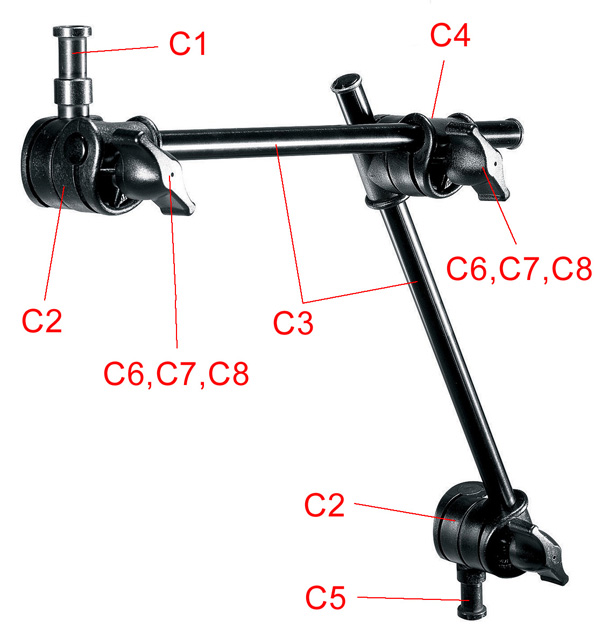

2935 2 Section Articulated Arm
(Replacement for original 196)
143BKT Camera Bracket
B1 Main Casting
B2 Rubber Pad
B3 Back Knob
B4 Side Knob
B5 1/4 Camera Screw
B6 3/8 Camera Screw
C1 1/4 Clamping Stud
C2 Upper & Lower Clamp Assembly
C3 Poles
C4 Middle Clamp Assembly
C5 3/8 Clamping Stud
C6 Washer
C7 Clamp Screw (Only available in assembly C2 or C4)
C8 Clamp Knob
C8 Replacement Clamp Knob
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
