2929QR Version 1 Variable Friction Arm with Quick Release Plate
Made after 2000-04-17
Also called Manfrotto 244RC
USED parts are marked as USED, new parts not marked. Where there is a dual listing the one not showing USED is the NEW part.
Joystick Ball head with 200PL style Quick release. Later versions are not all Compatible with this version. Check parts pictures for match before ordering.

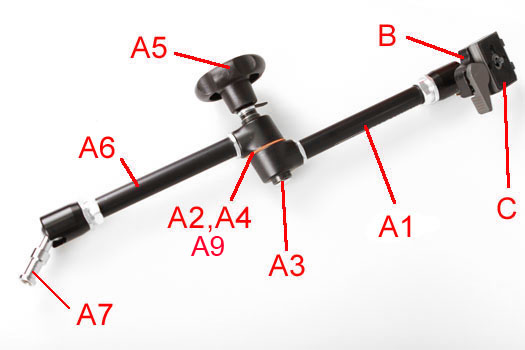

2929QR Variable Friction Arm
A1 1/4 Stud & Arm Assy
A2 Spacers
A3 Bolt & Bearings
A4 Internal Tension Bearing
A5 Tension Knob
A6 3/8 Stud & Arm Assy
A7 3/8 Stud
A9 Ball Bearing Set
B1 QR Safety Catch
B2 QR Cam Thumb Lever
B3 QR Cam Return Spring
B4 QR Cam Pivot Screw
Quick Release Plates
C1 1/4 200PL Plate
C2 3/8 200PL Plate - Replaced by 200PL-14 plate
C3 1/4 Anti-Rotate Plate
C4 3/8 Anti-Rotate Plate
C5 1/4 Turnbuckle Screw
C6 3/8 Turnbuckle Screw
Editor note: All versions of this item are interchangeable. Click on the numbered link to see the actual part picture.
